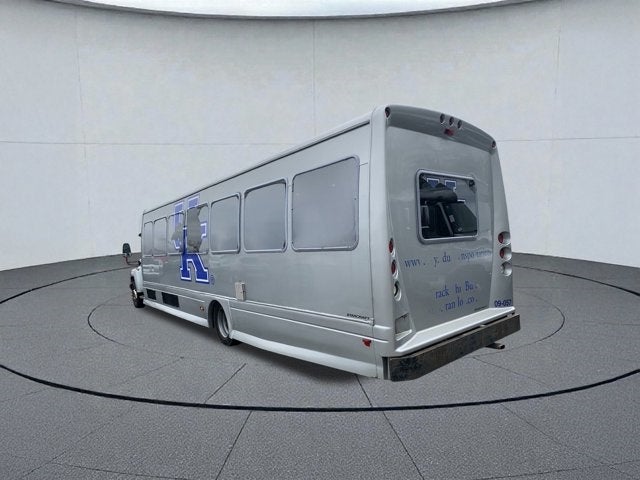

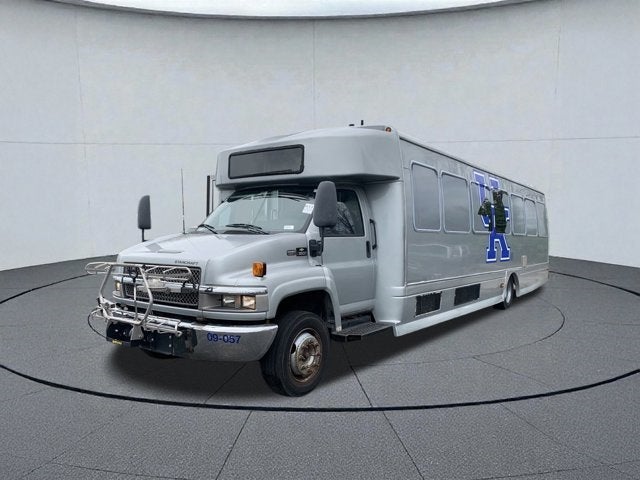

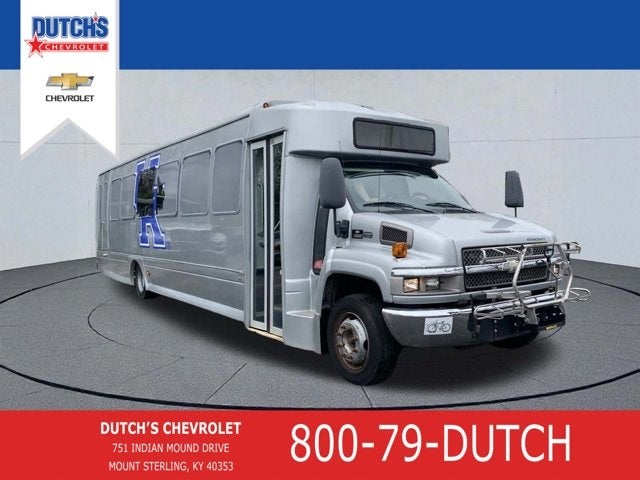

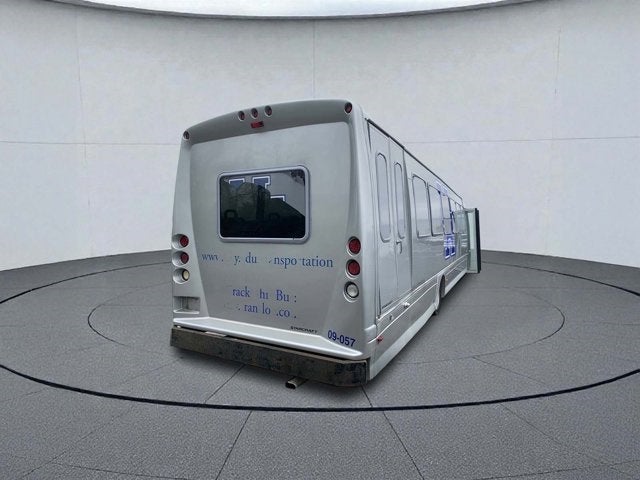

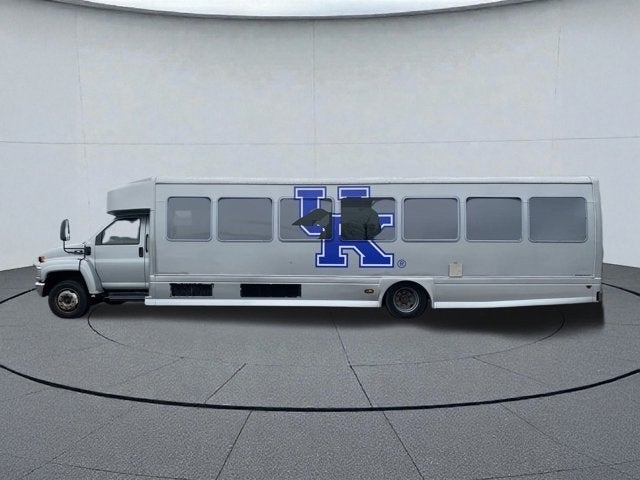

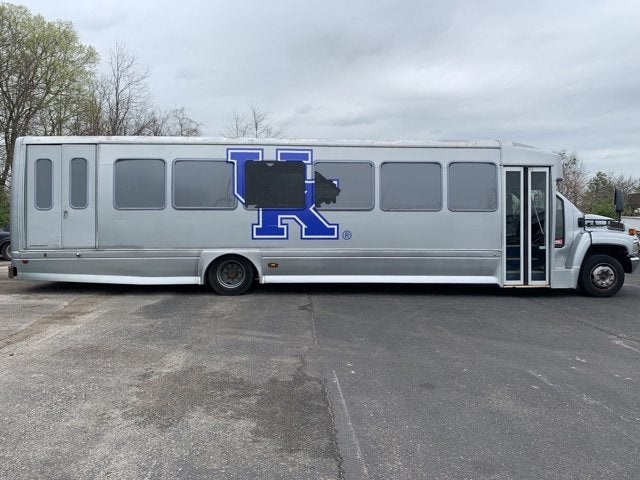

2009 Chevrolet CC5500

  • Internet Price $12,990

Visit our Store

Vehicle Information

VIN: 1GBJ5V19X9F408889
Stock #: 408889
Model Code: CC5V042
  • Condition Used
  • Body Style Cutaway Van
  • Exterior Color Summit White (Fleet)
  • Interior Color Dark Pewter
  • Mileage 139,496
  • Engine 8 Cyl - 6.6 L
  • Transmission 6-Speed Automatic with Overdrive / RWD

Dealer Comments

CARFAX One-Owner.

Summit White (Fleet) 2009 Chevrolet Cutaway Van CC5500 CC5500 V8 RWD


One Owner.

Click the CarFax button for a FREE full history report on any of ANY of our vehicles, courtesy of Dutch's Auto!

Get the deal that you deserve at Dutch's!!!

Eligible Benefits

View CARFAX report

All Features

  • Air cleaner, dry type
  • Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
  • Road Speed Governor, controlled by the speed rating of the tires ordered. - which will be less than or equal to 85 mph (137 kph); 75 mph (120 kph) with 245/70R19.5 tires (required for 22,000 to 26,000 lb GVWRs)
  • Alternator, AD244 Delco-Remy 150-amp maximum (N/A with ANM Fire and Rescue or YF2 Ambulance packages)
  • Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, includes 4-piston brake apply calipers. Steering Gear Series: ZF8014, (Requires GZG or GZJ GVWRs)
  • Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer) (Requires GZG or GZJ GVWRs)
  • Front shock absorber, diameter 1.375" (35mm)
  • Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
  • Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel)
  • Front tire size, 225/70R19.5F - 7280 lbs. (3302 kg) capacity, (With R4A Goodyear or R4L Michelin, requires R3C front premium highway tread)
  • Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
  • Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
  • Rear axle, single speed, Dana S110 13,500 lbs. (6123 kg) capacity - full floating, Includes 2-piston brake applied calipers. (Requires GZG or GZJ GVWR)
  • Rear wheel drive
  • Rear suspension, multi-leaf, 13,500 lbs. (6123 kg) capacity (Requires GZG or GZJ GVWR and HD2 single speed rear axle)
  • Rear suspension brackets are riveted to frame in lieu of bolts
  • Rear shock absorber not desired (N/A with tapered leaf springs)
  • Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity, (Requires Q82 steel front wheel)
  • Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread)
  • Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
  • Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
  • Wheelbase, 166" (421.6 cm) - with 100" (254 cm) CA with 189 (479.3 cm) CE. Includes a 6 mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63 (GVW's 18,000 - 19,500 lbs.)
  • Frame, 6mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
  • Fuel sender assembly. Robust fuel pump
  • Tethered fuel cap
  • Steering, power - ZF variable ratio power
  • Brakes, front, power, 4-wheel disc, 4 channel ABS 4-piston - (See front axle options more more details)
  • Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See rear axle options for more detail)
  • Paint scheme, solid, upper color, Summit White
  • Paint scheme, solid, lower color, Summit White
  • Exterior roof drip moldings
  • Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent

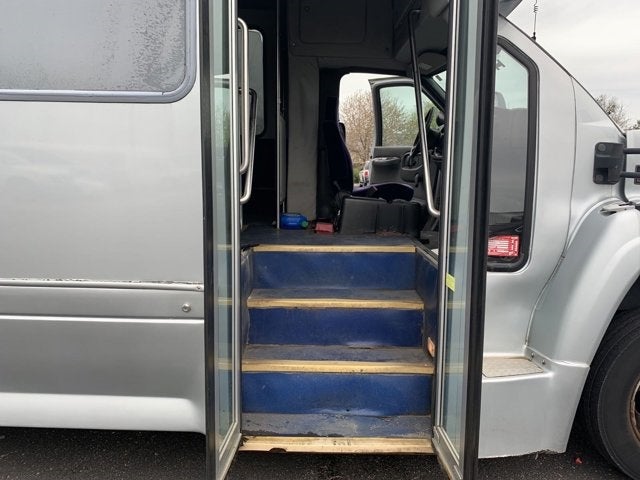

  • Steps under cab doors
  • Front mud flaps
  • Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
  • Roof marker lamps
  • Daytime running lamps
  • Windows, Solar-Ray tinted. Light tinted windshield and side window glass with light transmissity of 70%
  • Mirrors, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
  • Windshield wipers, 2-speed and intermittent, with pulse washers
  • Provisions for mounting front license plate
  • Positive door stops
  • Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
  • Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
  • Seat trim, vinyl, Very Dark Pewter
  • Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter vinyl or 69C Very Dark Pewter cloth)
  • Trim console - located next to driver's seat, and two cupholder
  • Molded vinyl floor covering
  • Steering wheel 16"
  • Two sided single common key for doors and ignition
  • Headlamp warning buzzer
  • Warning tone, key-in-ignition
  • Tachometer
  • Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
  • Stepwell storage areas at each door front and rear. Includes storage cover.
  • Cloth headliner
  • Sunshades, passenger side and driver side, cloth-covered
  • Coat hooks (2) located on cab back panel
  • Dome lamp switches included on driver and passenger doors
  • Provisions for stereo - Includes AM/FM antenna, lead wiring for speakers, and separate door chime module, (N/A with ZQ2 power convenience option)
  • Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
  • Powerpoints - two in-cab power sources (in addition to optional cigarette lighter) for electrical plug-in accessories
  • Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
  • 4-wheel disc, 4-channel ABS
  • Air bags, Supplemental Inflatable Restraints not included. This vehicle does not include any air bags
  • Seat belt warning indicator
  • Daytime running lamps

DURAMAX DIESEL 6.6L, 300 HP (223 KW) @ 3000 RPM, 520 LB-FT TORQUE (705 N-M) @ 1600 RPM

  • (Includes KPJ Engine shutdown) Oil Level Sensor: Warning sensor for low oil levels

  • One Owner
  • Vehicle
    • Front Frame Rating: - TBD -
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 600
    • Maximum Alternator Capacity (amps): 105
  • Cooling System
    • Total Cooling System Capacity (qts): 27.3
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 7000
    • Gross Axle Wt Rating - Rear (lbs): 13500
    • Curb Weight - Front (lbs): 4544.9
    • Curb Weight - Rear (lbs): 2802.8
    • Gross Vehicle Weight Rating Cap (lbs): 19500
    • Gross Combined Wt Rating (lbs): 26000
  • Suspension
    • Suspension Type - Front: Tapered Leaf
    • Suspension Type - Rear: Tapered Leaf
    • Spring Capacity - Front (lbs): 7000
    • Spring Capacity - Rear (lbs): 13500
    • Axle Type - Front: Reverse I Beam
    • Axle Type - Rear: Single Speed
    • Axle Capacity - Front (lbs): 6250
    • Axle Capacity - Rear (lbs): 13500
    • Axle Ratio (:1) - Rear: 4.78
    • Shock Absorber Diameter - Front (mm): 35
    • Stabilizer Bar Diameter - Front (in): 1.5
  • Brakes
    • Brake Type: Pwr 2 Piston
    • Brake ABS System: 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Disc - Rear (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 15 x 1.5
    • Rear Brake Rotor Diam x Thickness (in): 15 x 1.5
  • Tires
    • Front Tire Order Code: XTN
    • Rear Tire Order Code: YTN
    • Front Tire Size: 225/70R19.5F
    • Rear Tire Size: 225/70R19.5F
    • Front Tire Capacity (lbs): 7280
    • Rear Tire Capacity (lbs): 13660
    • Revolutions/Mile @ 45 mph - Front: 646
    • Revolutions/Mile @ 45 mph - Rear: 623
    • Number Of Tires Front: 2
    • Number Of Tires Rear: 4
    • Number Of Tires Spare: 1
  • Wheels
    • Front Wheel Size (in): 19.5 x 6.75
    • Rear Wheel Size (in): 19.5 x 6.75
    • Front Wheel Offset (mm): 5.60
    • Rear Wheel Offset (mm): 5.60
    • # of Bolt Holes - Front: 8
    • # of Bolt Holes - Rear: 8
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Front Wheel Description Cont.: Hub Piloted
    • Rear Wheel Description Cont.: Hub Piloted
    • Front Bolt Pattern: 8stud/275mm
  • Steering
    • Steering Type: Pwr
    • Steering Ratio (:1), On Center: 16.1
    • Steering Ratio (:1), At Lock: 19.6
  • Frame
    • Frame Type: Ladder-Type
    • Sect Modulus Rails Only (in³): 7.63
    • Frame RBM (N/A): 381500
    • Frame Strength (lbs): 80000
    • Frame Thickness (in): 0.24
  • Fuel Tank
    • Fuel Tank Location: LH
  • Exterior Dimensions
    • Width, Max w/o mirrors (in): 95.9
    • Height, Overall (in): 89.5
    • Overhang, Front (in): 37.0
    • Front Bumper to Back of Cab (in): 104.9
    • Frame Width, Rear (in): 2.84
  • Interior Dimensions
    • Passenger Capacity: 2
    • Front Head Room (in): 41.7
    • Front Leg Room (in): 41.1
    • Front Shoulder Room (in): 66.8
    • Front Hip Room (in): 63.8
  • Summary
    • Vehicle Name: Chevrolet CC5500
    • Body Style: Cutaway Chassis Cab
  • Medium Duty Performance
    • Driver Ratio: 0.75
    • Torque @ Clutch Engage (ft-lbs): 345
    • Torque @ Clutch Engage (ft-lbs): 332
    • Torque Converter: 1.73
    • Torque Converter: 2.05
    • Static Loaded Radius (in): 17.2
    • Max Speed For Gradeability: 75
